Magnetic drum conveyor｜Bunri is a specialized manufacturer of equipment that separates and discharges sludge and chips from grinding and cutting
Powerful magnetic drum conveyor MMS
Super strong magnetic drum conveyor M10
Powerful magnetic drum conveyor HMS
#30 Super strong magnetic drum conveyor M10
Microfiltration conveyor equipped with powerful magnetic drum.
Optimum for cutting chip processing of castings and iron.
Features
- No mist is generated by the in-liquid filtration, which helps improve the environment in the factory.
- 80 to 90% of chips settle near the dirty fluid inlet, so the magnetic drum provides efficient filtration.
- Since the power source is the geared motor of the conveyor, it helps reduce power consumption.The chain scraper and magnetic drum are driven by the same geared motor.
- The chip discharge port of the conveyor has a structure that drains liquid, which ensures that chips are drained before being discharged.This processing reduces the load to carry out coolant (means that coolant is discharged together with chips).
- Optimal design with consideration for maintenance.
- This product does not use any consumables such as cartridge filters or paper filters, so no industrial waste is generated.
| Coolant | Water soluble Oil-based |
|---|---|
| Category | Magnetic material |
| Processing details | Cutting |
| Work material | FC/FCD Steel |
| Chip shape | Sandy Cottony Granular Needle-shaped Small curl-shaped (50 mm or less) |
| Grinding chip size | |
| Machine tool | Machining center #30 Machining center Broaching machine Gear cutting machine Gun drill machine Cutting specialized machine Washing machine |
Product introduction video

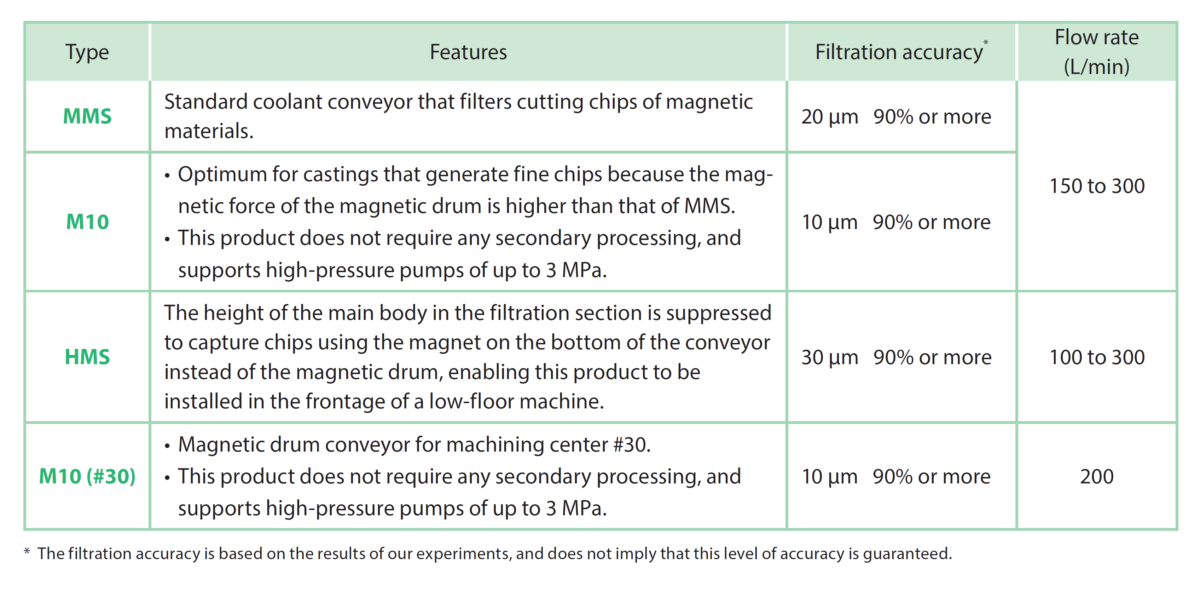

Features of 4 Type
MMS
- Standard coolant conveyor that filters cutting chips of magnetic materials.
M10
- Optimum for castings that generate fine chips because the magnetic force of the magnetic drum is higher than that of MMS.
- This product does not require any secondary processing, and supports high-pressure pumps of up to 3 MPa.
HMS
- The height of the main body in the filtration section is suppressed to capture chips using the magnet on the bottom of the conveyor instead of the magnetic drum, enabling this product to be installed in the frontage of a low-floor machine.
M10（#30）
- Magnetic drum conveyor for machining center #30.
- This product does not require any secondary processing, and supports high-pressure pumps of up to 3 MPa.

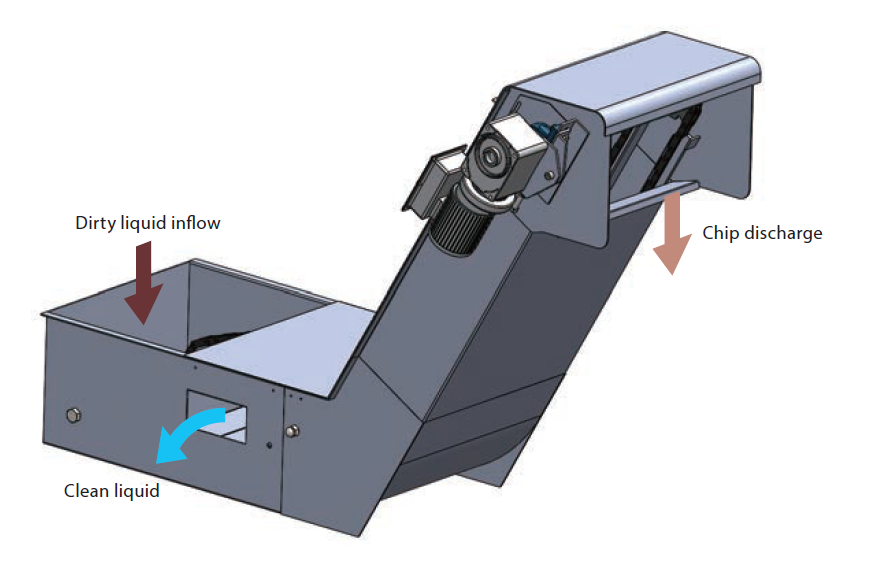

Mechanism

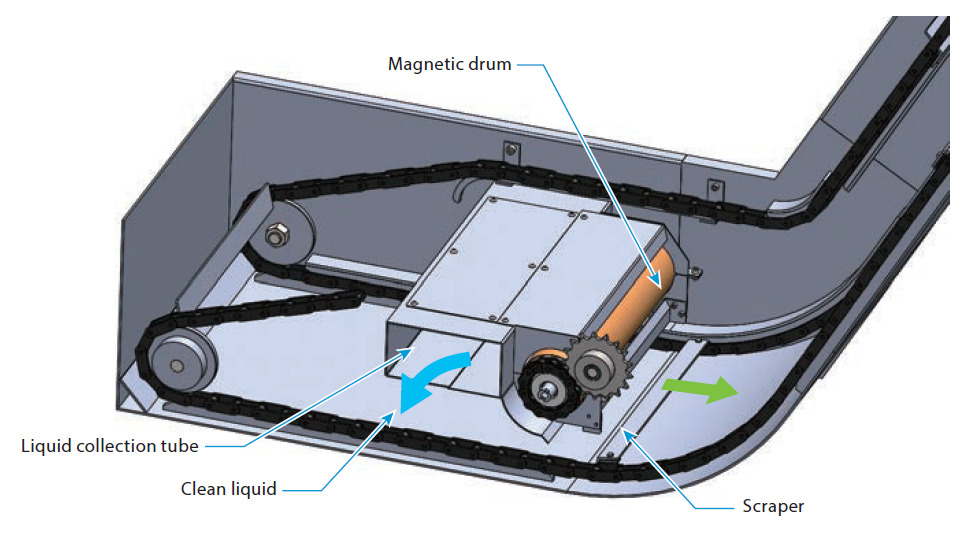

MMS・M10・M10（#30）

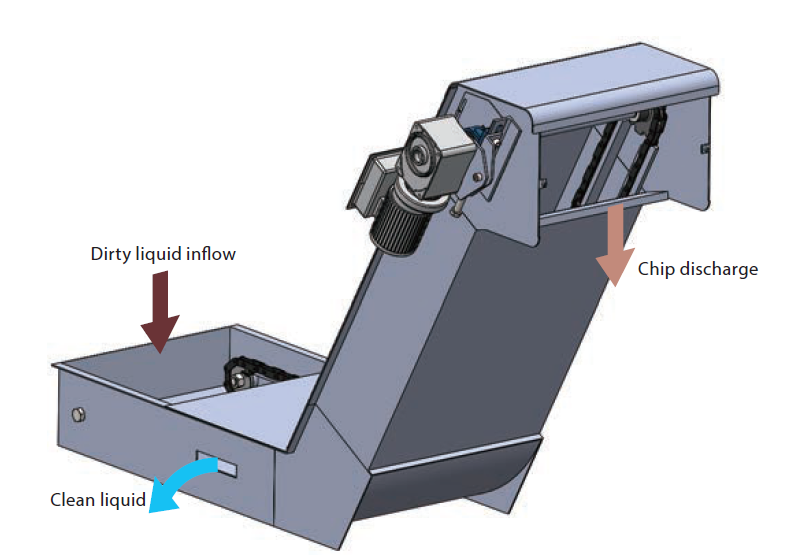

- The dirty liquid flows onto the conveyor, and 80 to 90% of chips settle on the bottom of the conveyor.

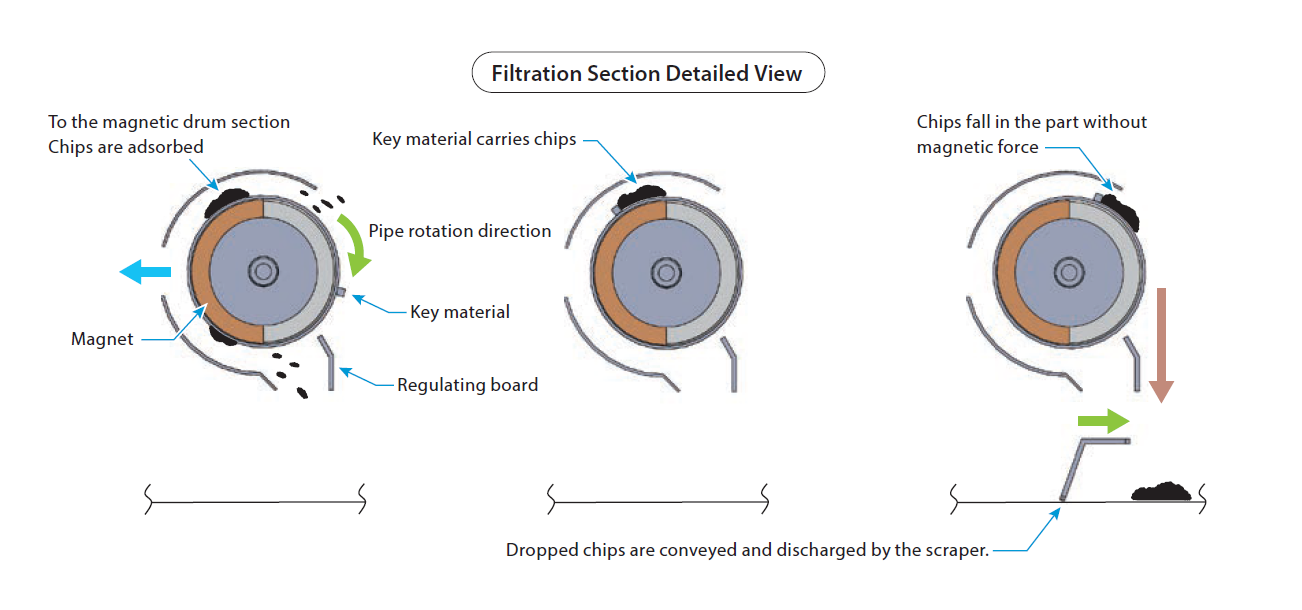

- 10 to 20% of chips that do not settle are captured by the magnetic drum.The captured chips are demagnetized at the part of the magnetic drum that is not magnetic, and settle on the bottom of the conveyor.
- The dirty liquid passes through the magnetic drum to become a clean liquid, which is supplied to the clean tank.
- The settled chips are conveyed by the scraper and discharged to the outside of the main body.

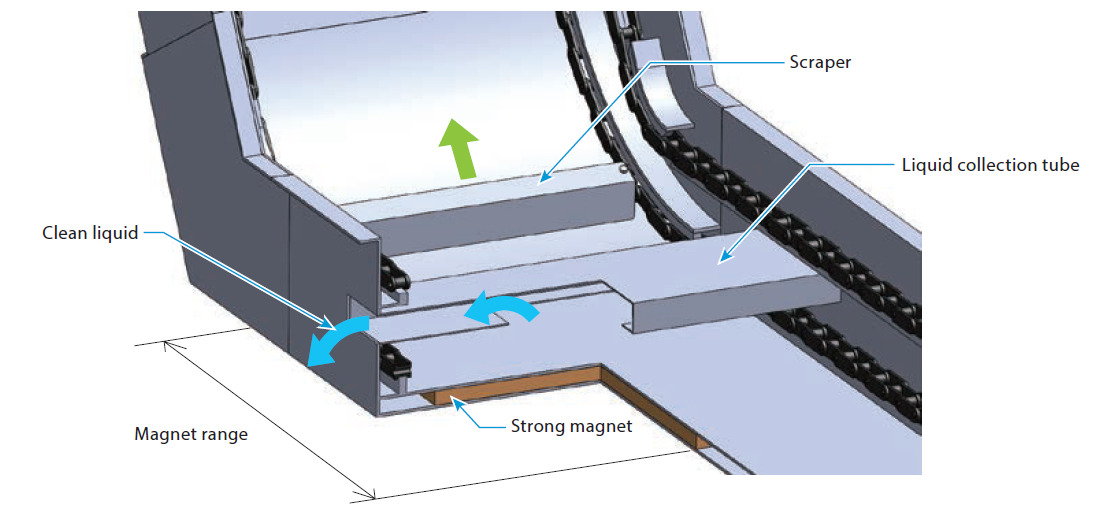

HMS
- The dirty liquid flows onto the conveyor.
- Chips are captured by the magnet installed on the bottom of the conveyor.
- Chips captured by the magnet on the bottom of the conveyor are conveyed by the scraper.
- Chips are temporarily stored in the conveyor outlet, drained, and then discharged.
Specifications
MMS・M10

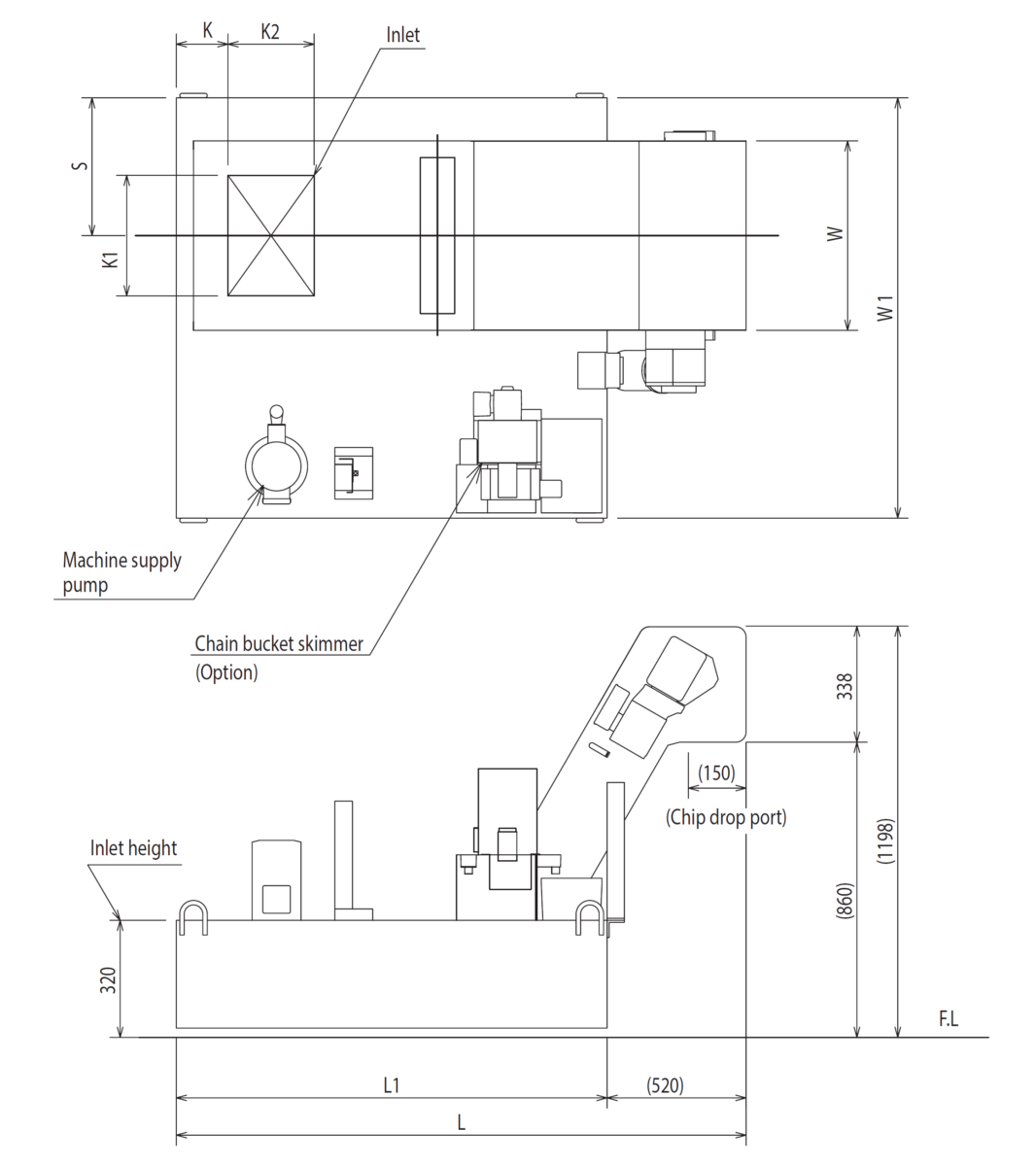

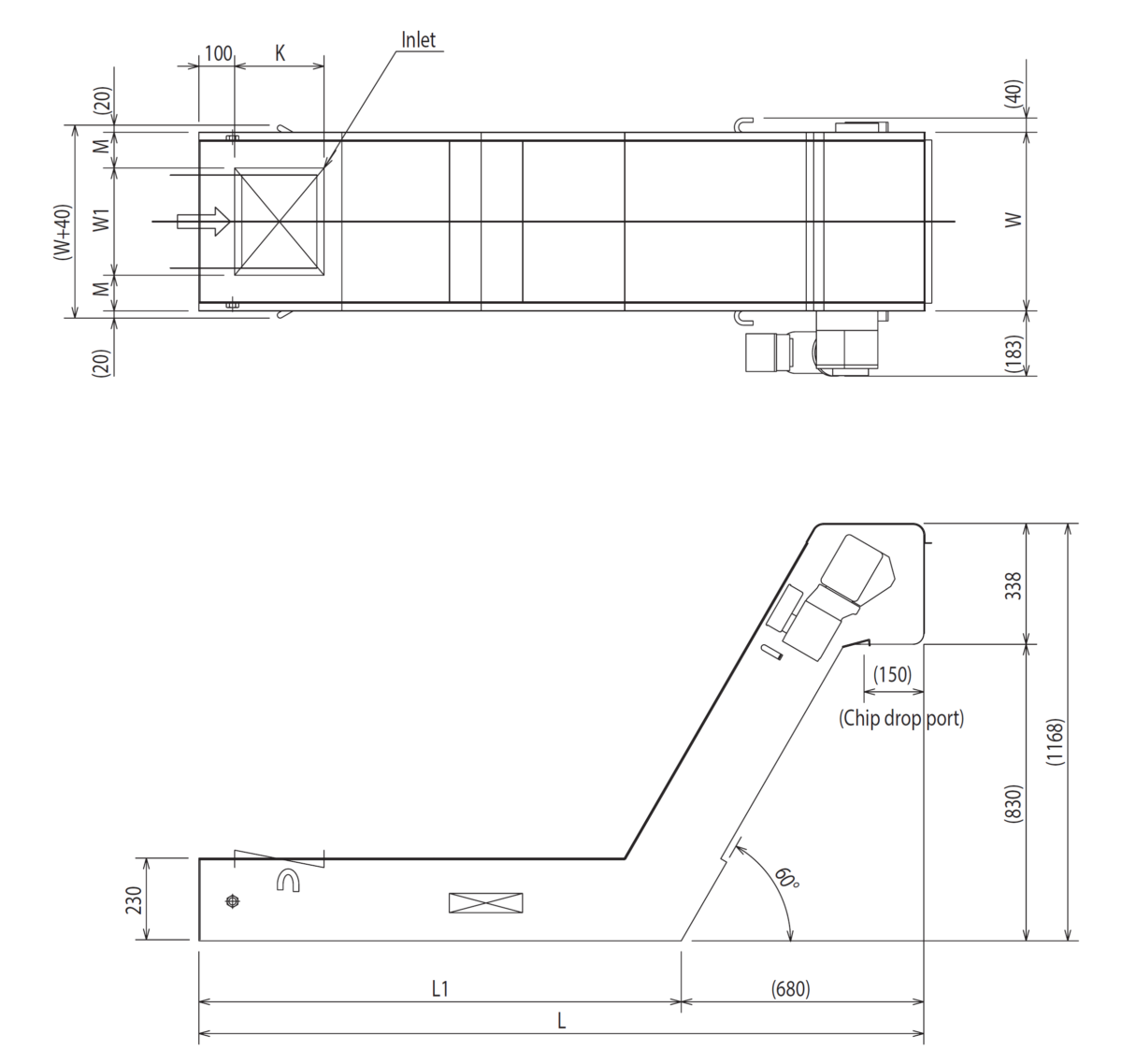

Dimensional drawing

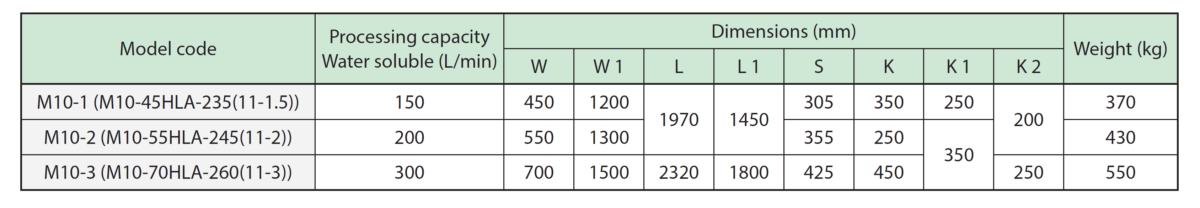

Dimension table
HMS
Dimensional drawing

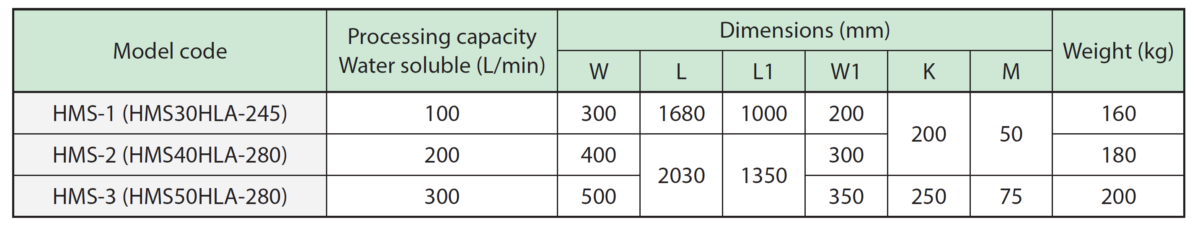

Dimension table
M10（♯30）

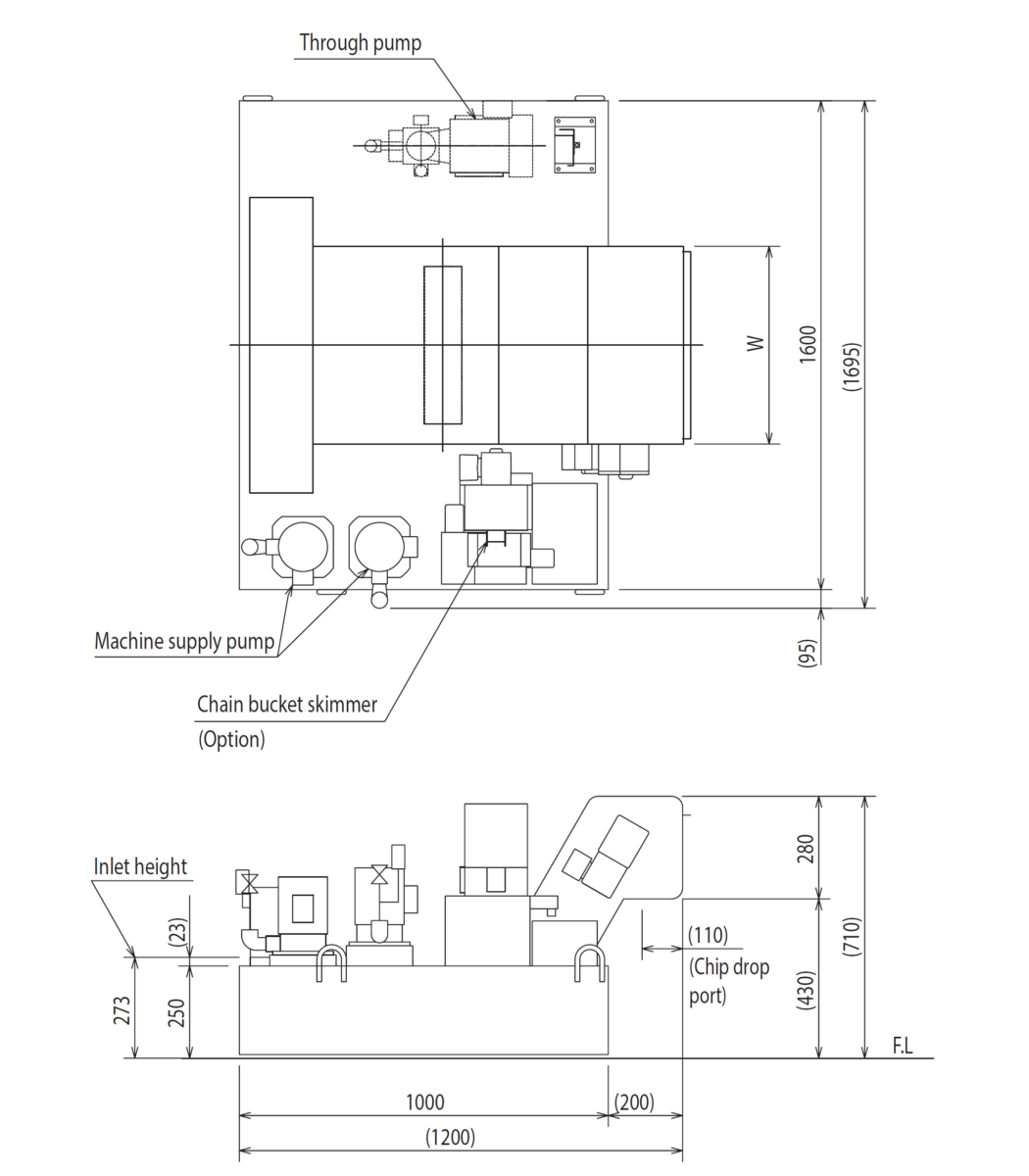

Dimensional drawing

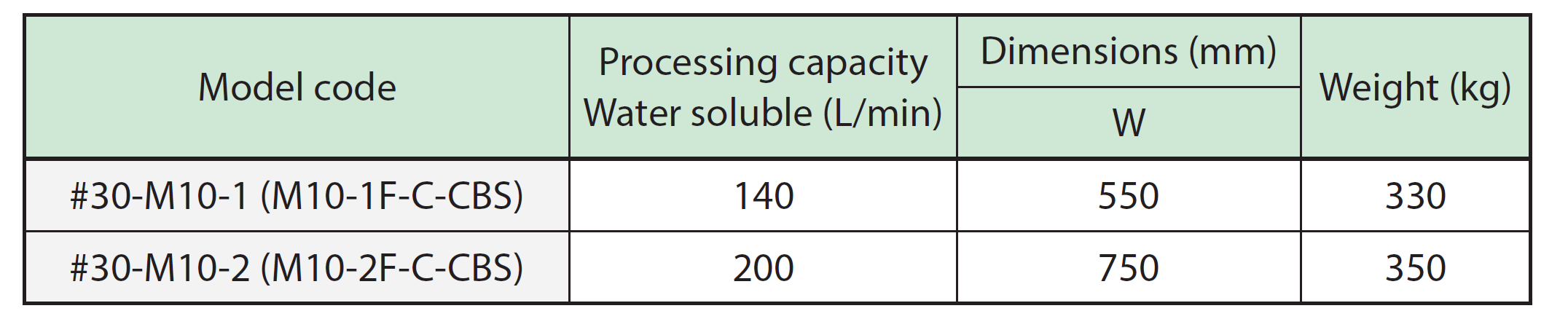

Dimension table
Filtration accuracy
- MMS 20μm 90％ or more
- M10 10μm 90％ or more
- HMS 30μm 90％ or more
- M10(#30) 10μm 90％ or more
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

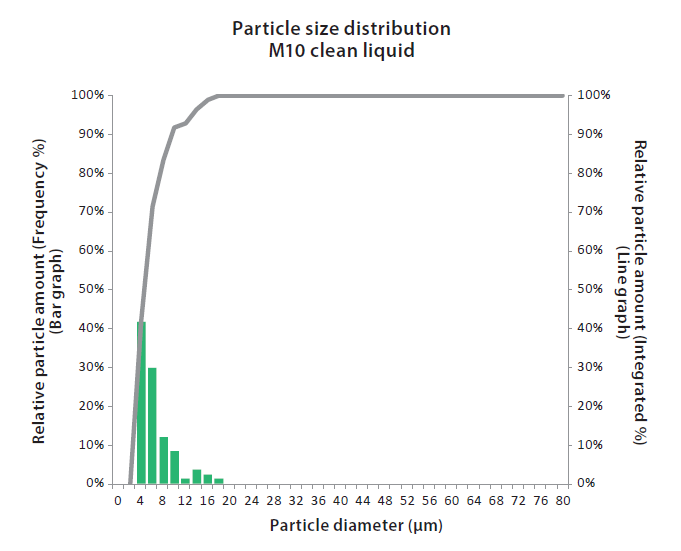

Sludge distribution status

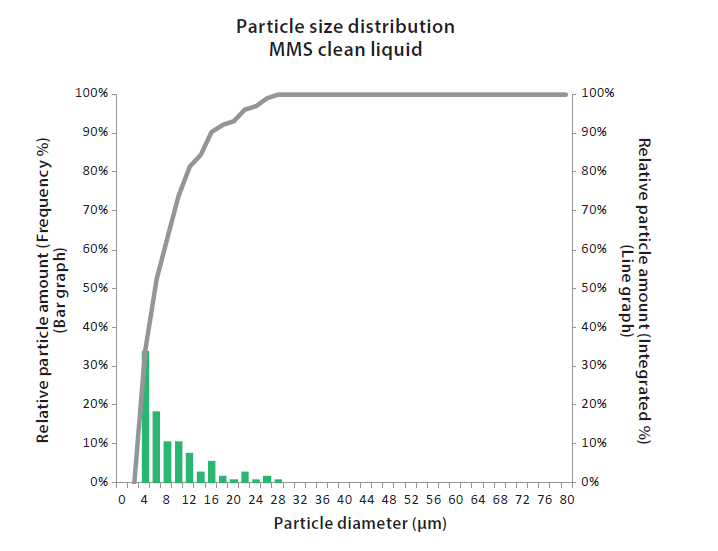

MMS
M10

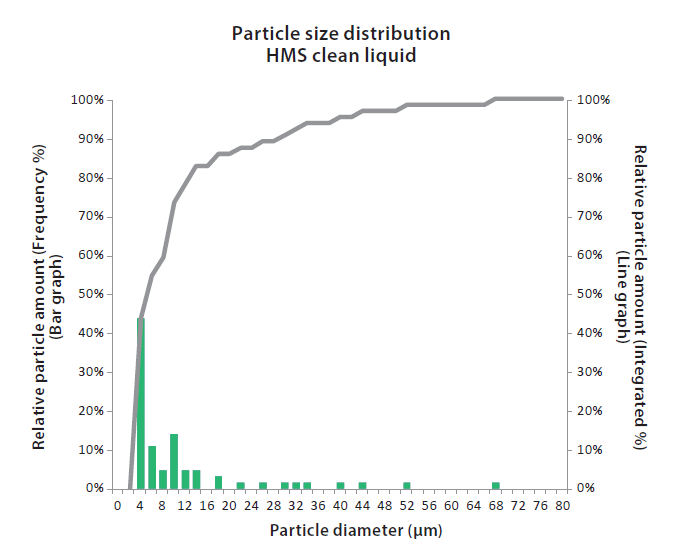

HMS
Machine tool: Machining center Coolant: Water soluble Processing flow rate: 200 L/min Chip material: FC
Processing flow rate
Water soluble
- M10-1（M10-45HLA-235(11-1.5)） 150L/min
- M10-2（M10-55HLA-245(11-2)） 200L/min
- M10-3（M10-70HLA-260(11-3)） 300L/min
- HMS-1（HMS30HLA-245） 100L/min
- HMS-2（HMS40HLA-280） 200L/min
- HMS-3（HMS50HLA-280） 300L/min
- #30-M10-2（M10-2F-C-CBS） 200L/min
Product weight
- M10-1（M10-45HLA-235(11-1.5)） 370kg
- M10-2（M10-55HLA-245(11-2)） 430kg
- M10-3（M10-70HLA-260(11-3)） 550kg
- HMS-1（HMS30HLA-245） 160kg
- HMS-2（HMS40HLA-280） 180kg
- HMS-3（HMS50HLA-280） 200kg
- #30-M10-2（M10-2F-C-CBS） 350kg
* For details, please check the product dimensions.
* The product weight varies depending on the specifications, options, etc.
Paint color
Silver gray (Munsell No. N-8.0)
* For information about the specified color, please consult us.
Geared motor
- M10/MMS/HMS 100W
- M10 (#30) 25W
Option
- Chain bucket skimmer CBS
- Relay terminal box
- Control panel, Operation box
* Please contact us for details.

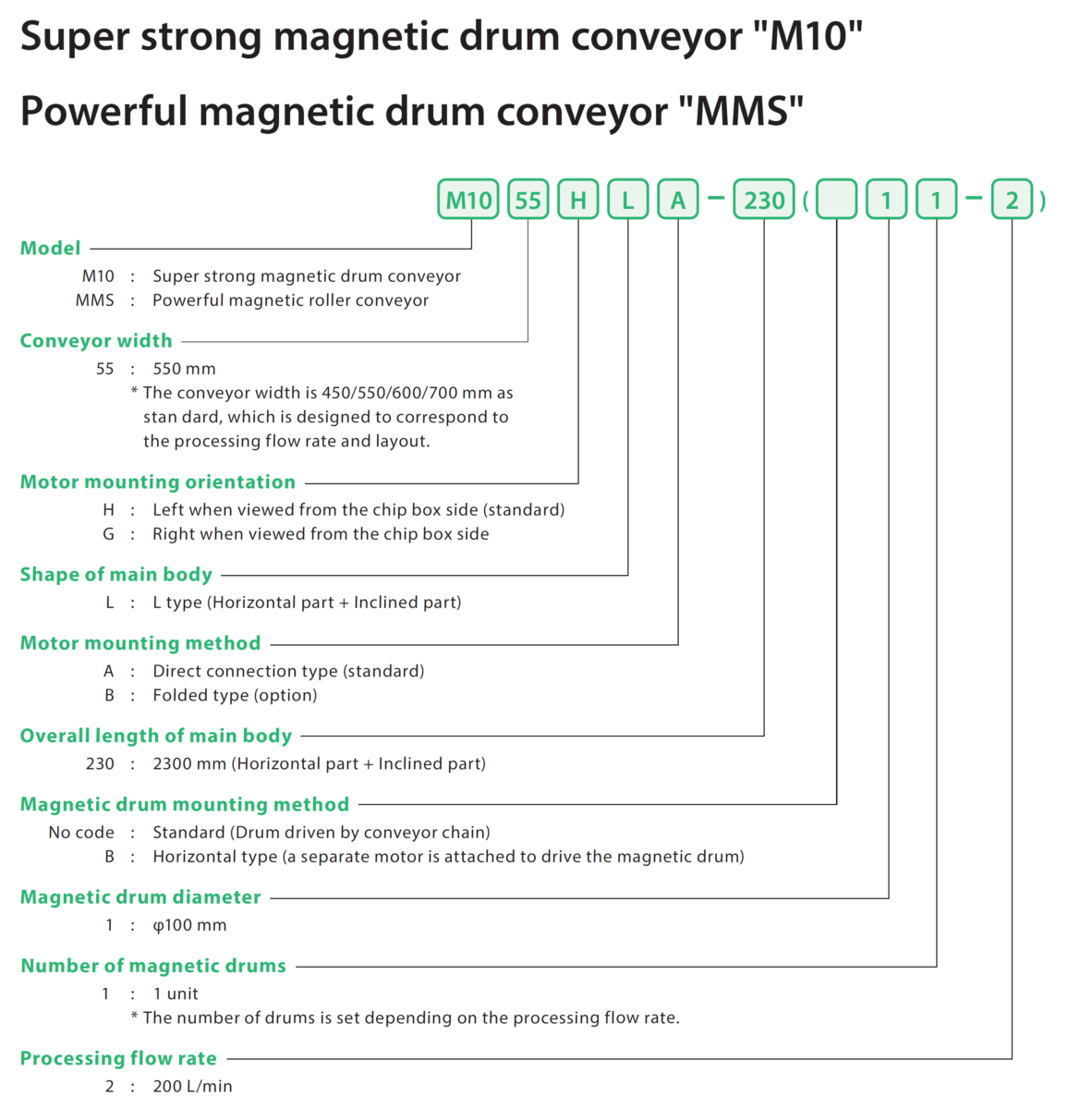

Model code
M10・MMS

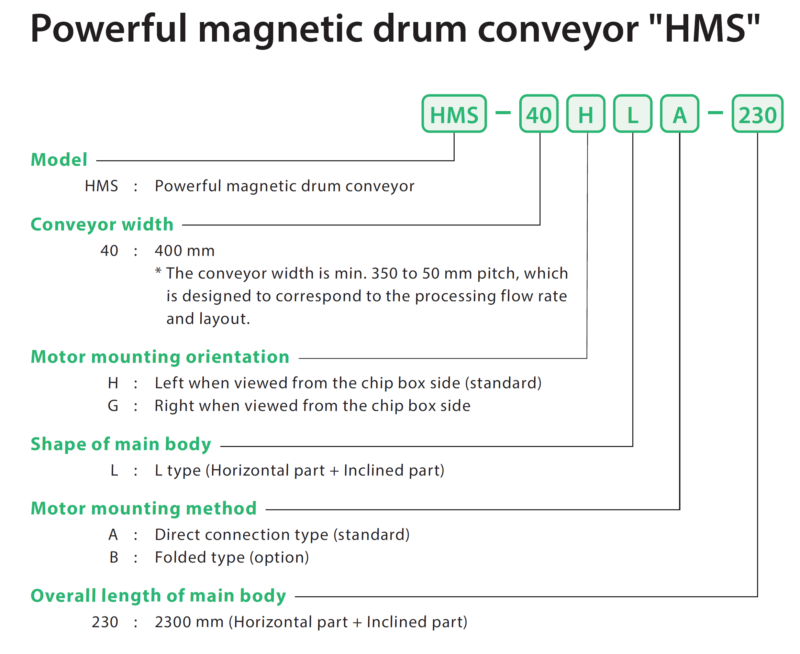

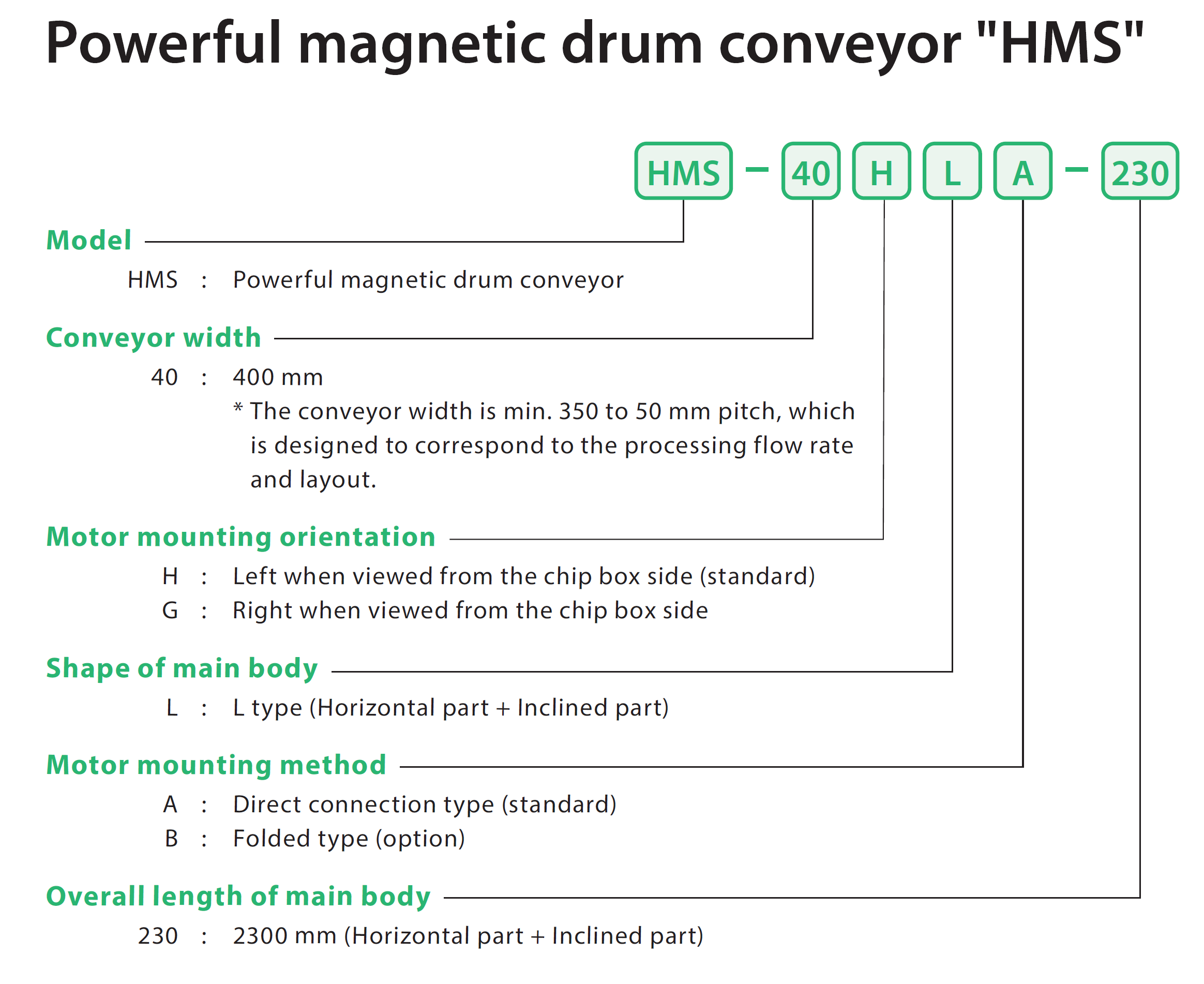

HMS
* For the M10 (#30) model, please consult us.
Product Photo (Example)
MMS・M10 Option(CBS)
HMS
M10（＃30） Option(CBS)
Chip discharge image
* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
